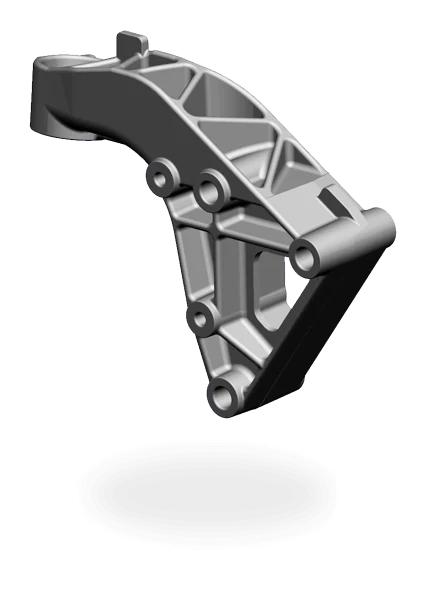

Engine mounting bracket for the VAZ 2110
Gravity die with manual actuation and a removable top insert.
An engine mounting bracket for the VAZ 2110 and its derivatives.
Design decisions
- Gravity die with manual actuation.
- The top insert is removable, so the wearing part can be serviced or replaced without taking the whole tool out of production.
Gravity die casting is the right choice for this part: batch sizes are moderate, while a loaded bracket calls for dense metal.
